Closed Loop Cooling Systems

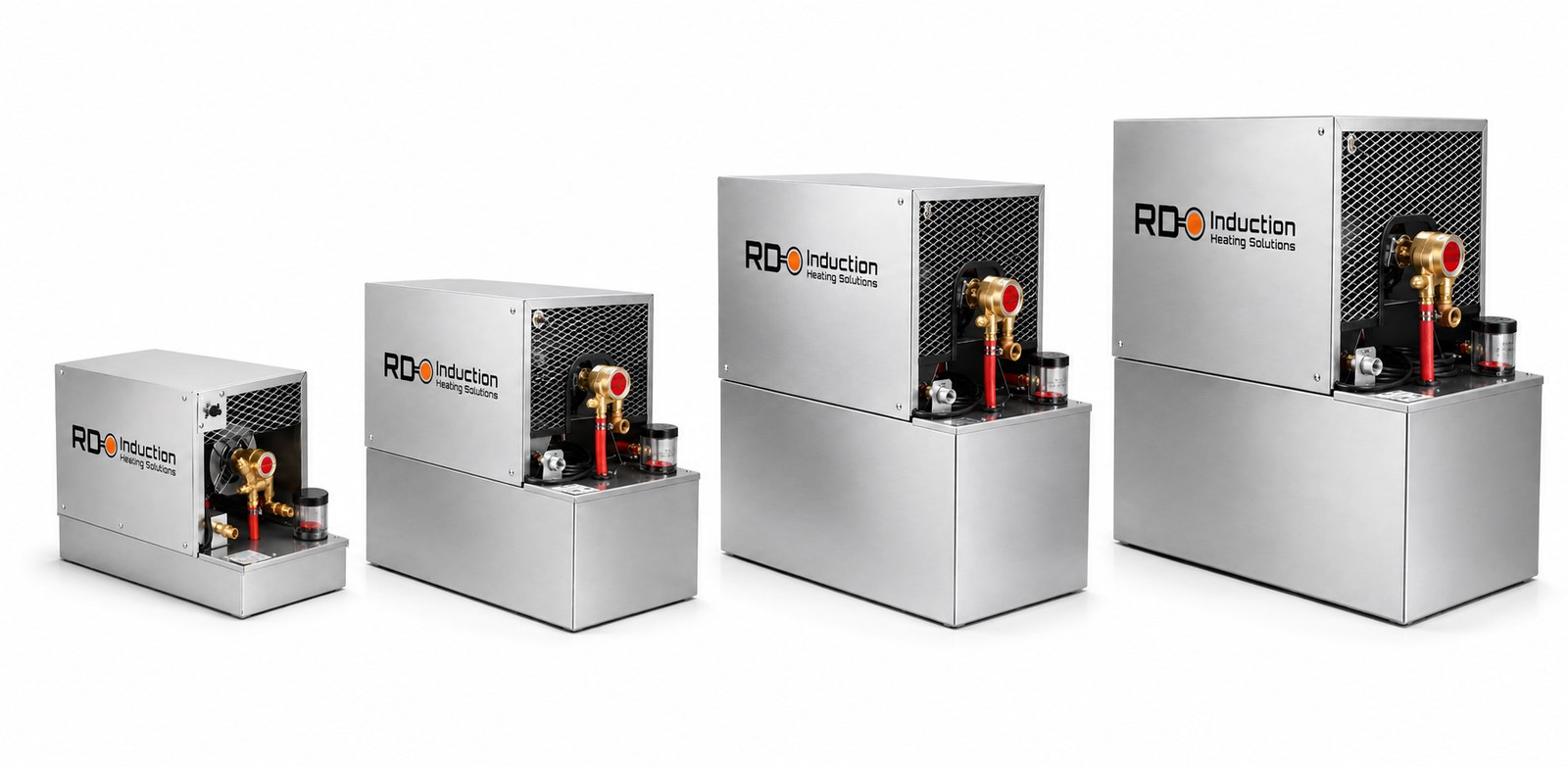

Induction Cooling SystemsRDO’s closed loop water cooling systems range from 3 to 25 gallon capacity. Depending on the induction system and application, the appropriate system will be recommended for optimal performance. Installing the proper cooling system will extend the life of the induction power supply, reduce maintenance costs as well as downtime.

Closed Loop Cooling SystemOur systems are stainless steel construction which eliminates coolant contamination due to electrolysis or chemical reactions. They are plumbed with copper tubing and a reinforced hose. No external plumbing is required for our closed loop water systems. Water level float gauge and filler caps are combined in a single unit multi-purpose sight-glass which enables operator to observe return water from a distance. These units are equipped with thermal overload. RDO also supplies and sells Lubricist water treatment solution for inhibiting algae growth.

Specifications

MODELReservoir sizePSIPowerAmpsBTUPumpsFittingsWeightDimensions
(LxWxH)

3V/R1100 3 gallons Factory set at 80 adjustable to 100 psi 115 or 230 VAC / 1ph- 50 / 60 Hz 5.6 / 2.8 amps : 60 Hz 1 Phase 15,000 Rotary VANE 1.7gpm at 80psi 1/4” NPT fittings (water in/out) 42 lbs. 23” x 11” X 14.75” Request A Quote
10V/R1200 10 gallons Factory set at 80 adjustable to 100 psi 115 or 230 VAC / 1ph- 50 / 60 Hz 5.6 / 2.8 amps : 60 Hz 1 Phase 15,000 Rotary VANE 1.7gpm at 80psi 1/4” NPT fittings (water in/out) 48 lbs. 3” x 11” X 20” Request A Quote
15V/R2200 15 gallons Factory set at 60 adjustable to 100 psi 115 or 230 VAC / 1ph- 50 / 60 Hz 8.2 / 4.1 amps : 60 Hz 1ph 30,000 Rotary VANE 4.0gpm at 60psi 1/2“ NPT fittings (water in/out) 70 lbs. 23” x 16” X 25.5” Request A Quote
25G/R4000 25 gallons Factory set at 60 adjustable to 100 psi 208-230/460 VAC / 50/60 Hz 3ph 4.4 / 4.2/2.1 amps: 60 Hz 3ph 55,000 Rotary GEAR 10.0gpm at 60psi 1/2“ NPT SS Pipe – (water in/out) 170 lbs. 36” x 19.5” X 35” Request A Quote

Replacement Parts

PartModel 3V/R1100Model 10V/R1200Model 15/VR2200Model 25G/R4000
Pump P1100 P1100 P2200 P4015
Motor M3000 M3000 M2011 M2008



WHC Chill Systems

WHC Chiller RDO also provides larger water chill systems for your induction application needs.  Front Panel for Induction Cooler


Specifications

SpecificationWHC-03WHC-05WHC-08WHC-10WHC-15WHC-20WHC-25
Cooling Capacity BTU/HR 36,000 60,000 96,000 120,000 180,000 240,000 300,000
Supply Voltage 220V, 3P/460V, 3P 220V, 3P/460V, 3P 220V, 3P/460V, 3P 220V, 3P/460V, 3P 480V, 3P 480V, 3P 480V, 3P
Current (AMPs) 12.5/7 20/10 29/14 38/19 30 42 45
Water Flow (Gal/m) 30 30 30 34 87 87 87
Tank Capacity (Gallons) 14 16 29 32 47 84 84
Connection size 1” pipe fitting 1” pipe fitting 1” pipe fitting 1” pipe fitting 2” pipe fitting 2” pipe fitting 2” pipe fitting
Dimensions (LxWxH) 36x27x46 42x27x48 46x31x63 46x34x67 66x46x70 74x57x75 74x57x75
Weight (lbs) 440 550 815 880 1210 1715 2100
  Request A Quote Request A Quote Request A Quote Request A Quote Request A Quote Request A Quote Request A Quote
